10347
(Available through special order only. Please allow 2 to 3 weeks for delivery.)

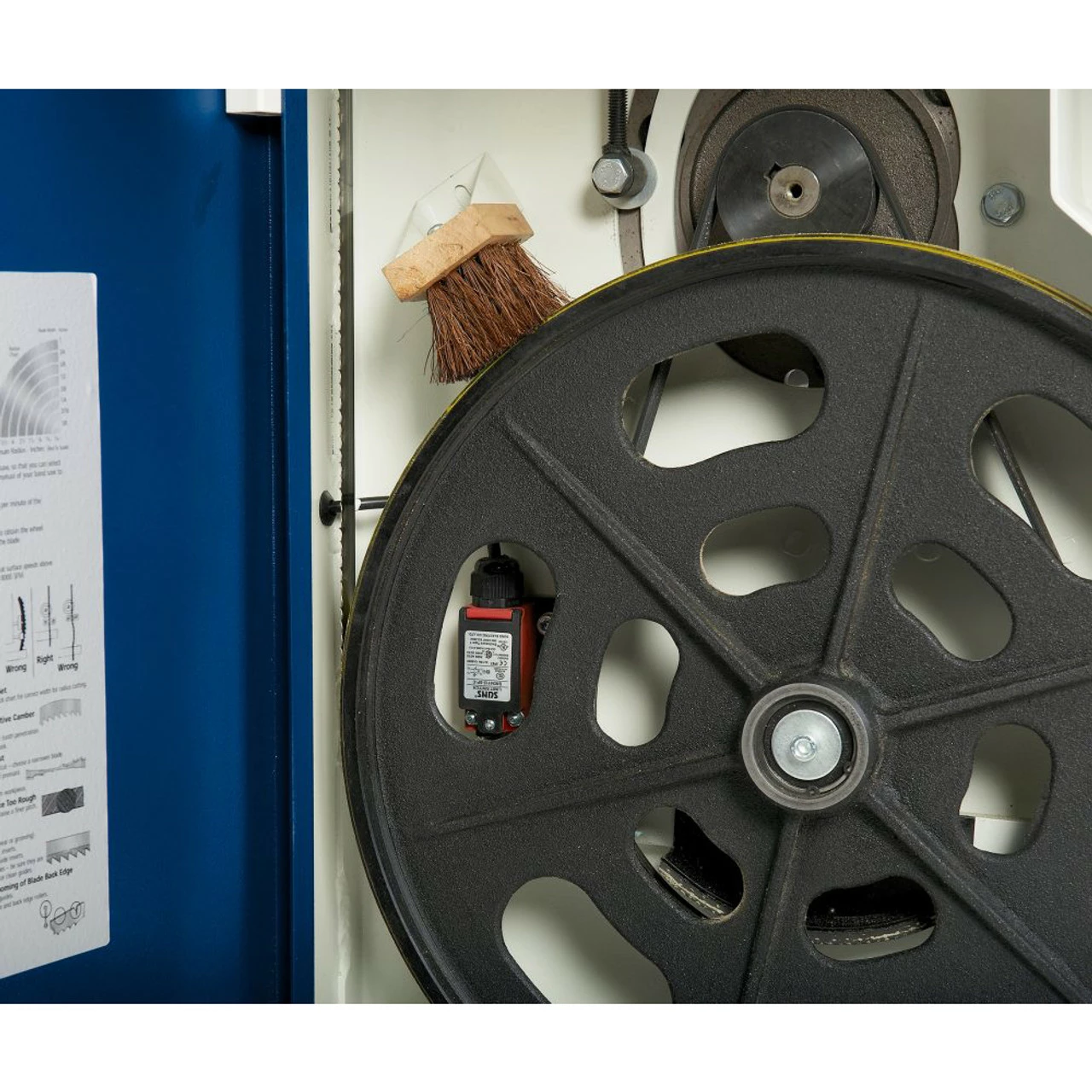

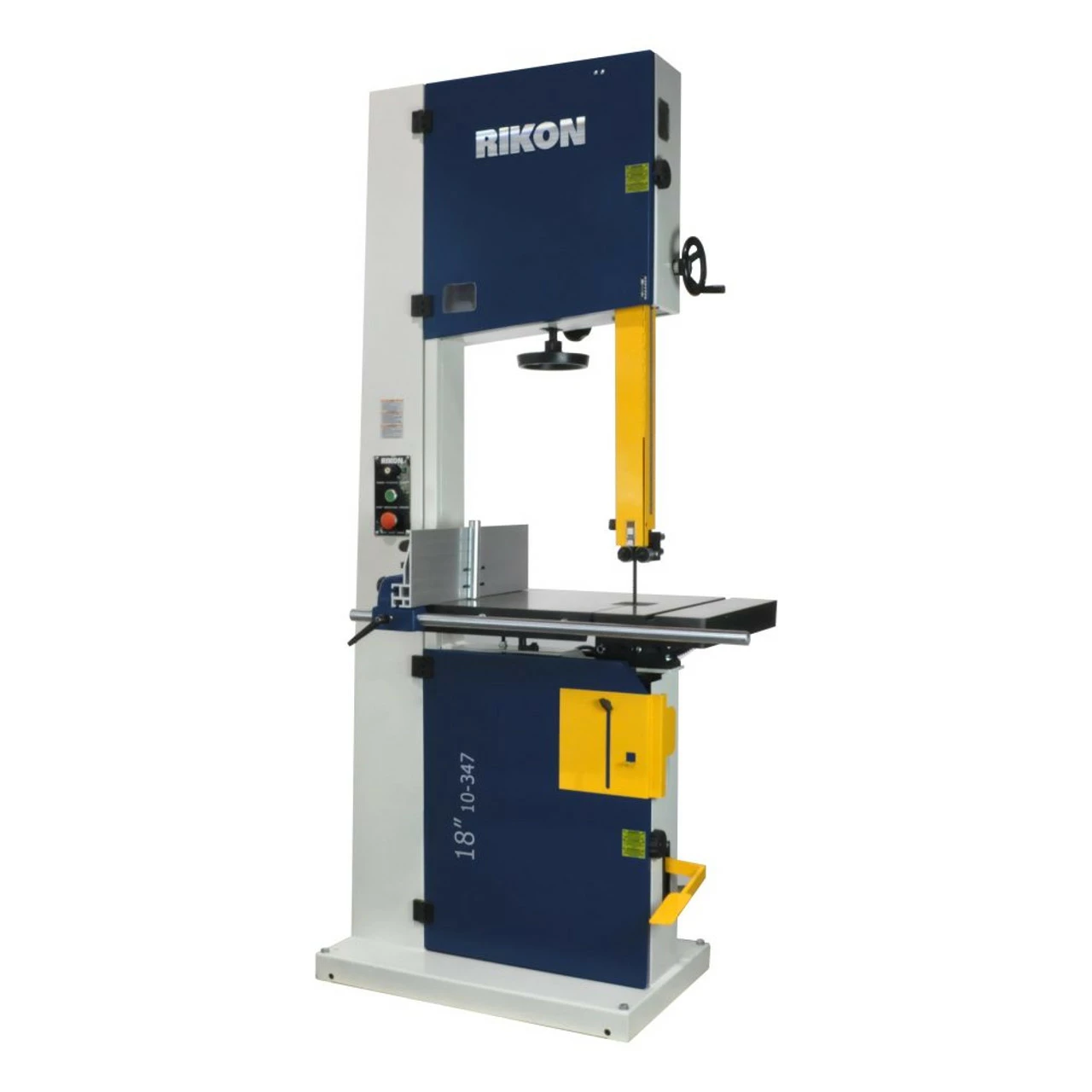

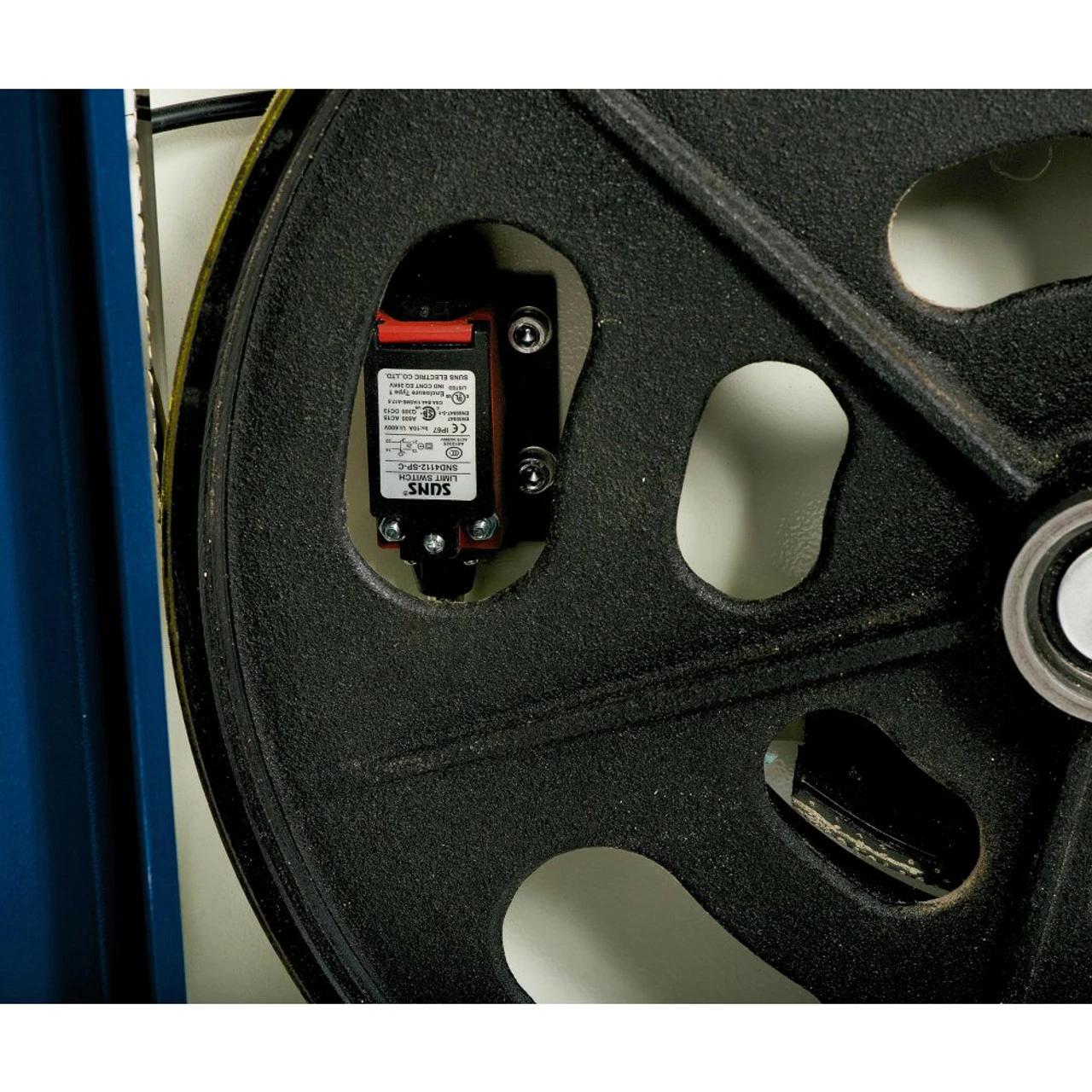

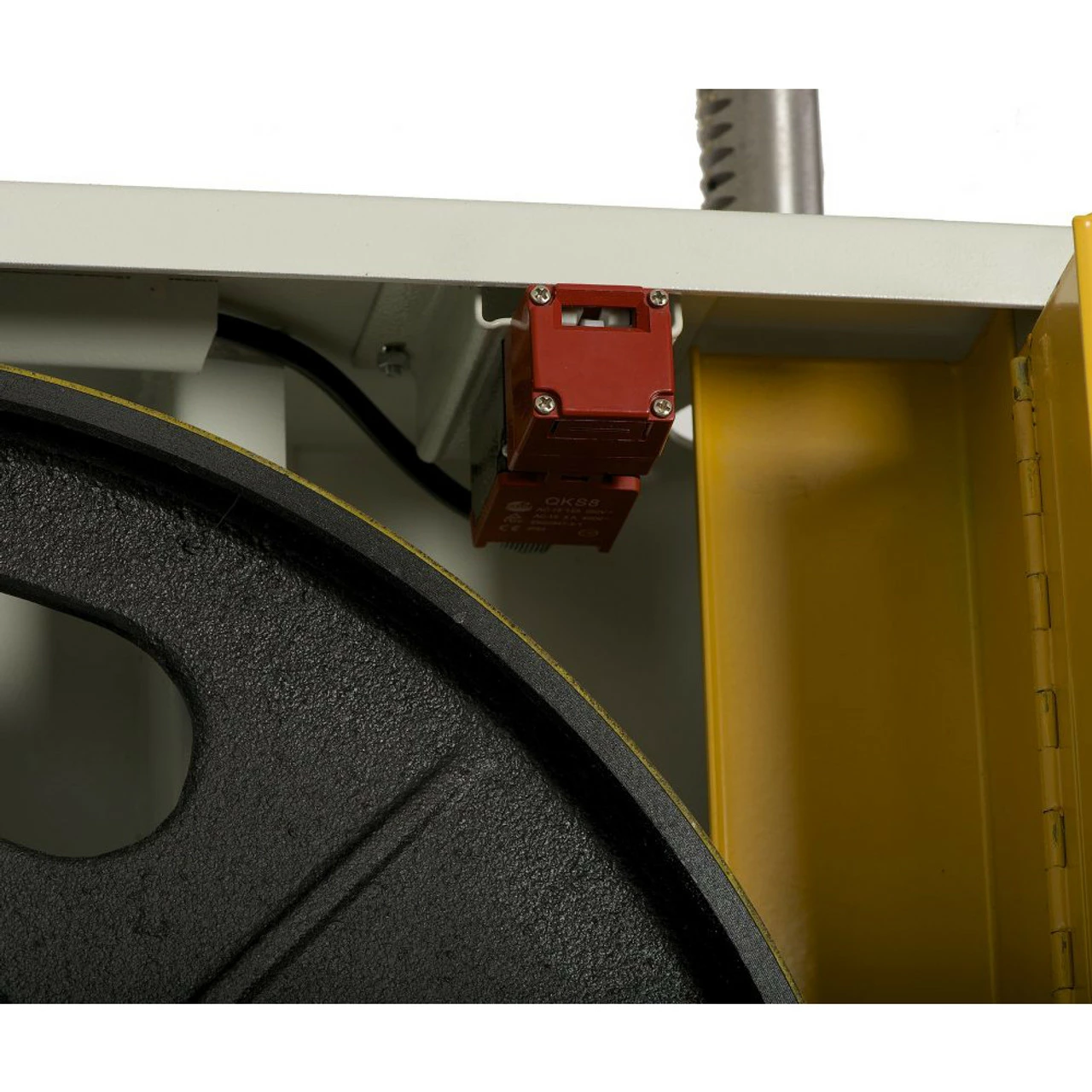

The 18″ Bandsaw (10347) has one of the most powerful motors in the line, 4HP with 19″ of re-saw capacity, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include patient pending spring loaded tool-less guide system, massive cast iron table with quick adjust trunnion system, substantial quick adjust 6″ tall rip fence system, key activated safety on/off switch, micro safety on/off switch activated door & foot brake. Under the top door blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.
Feature:
Patent Pending Spring Loaded Tool-less Guide System
Patent Pending Quick Adjust 6″ Tall Rip Fence System

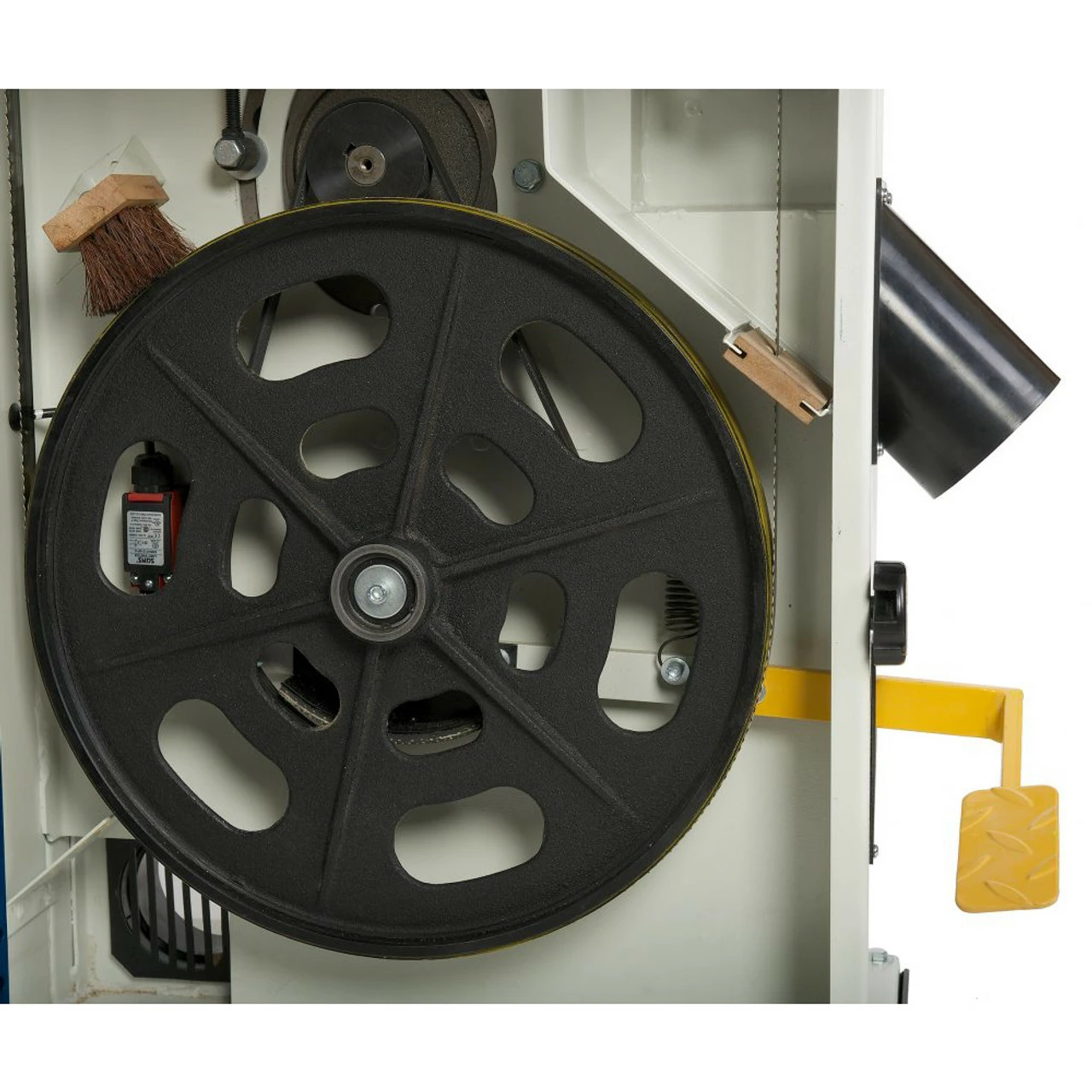

Cast Iron Wheels

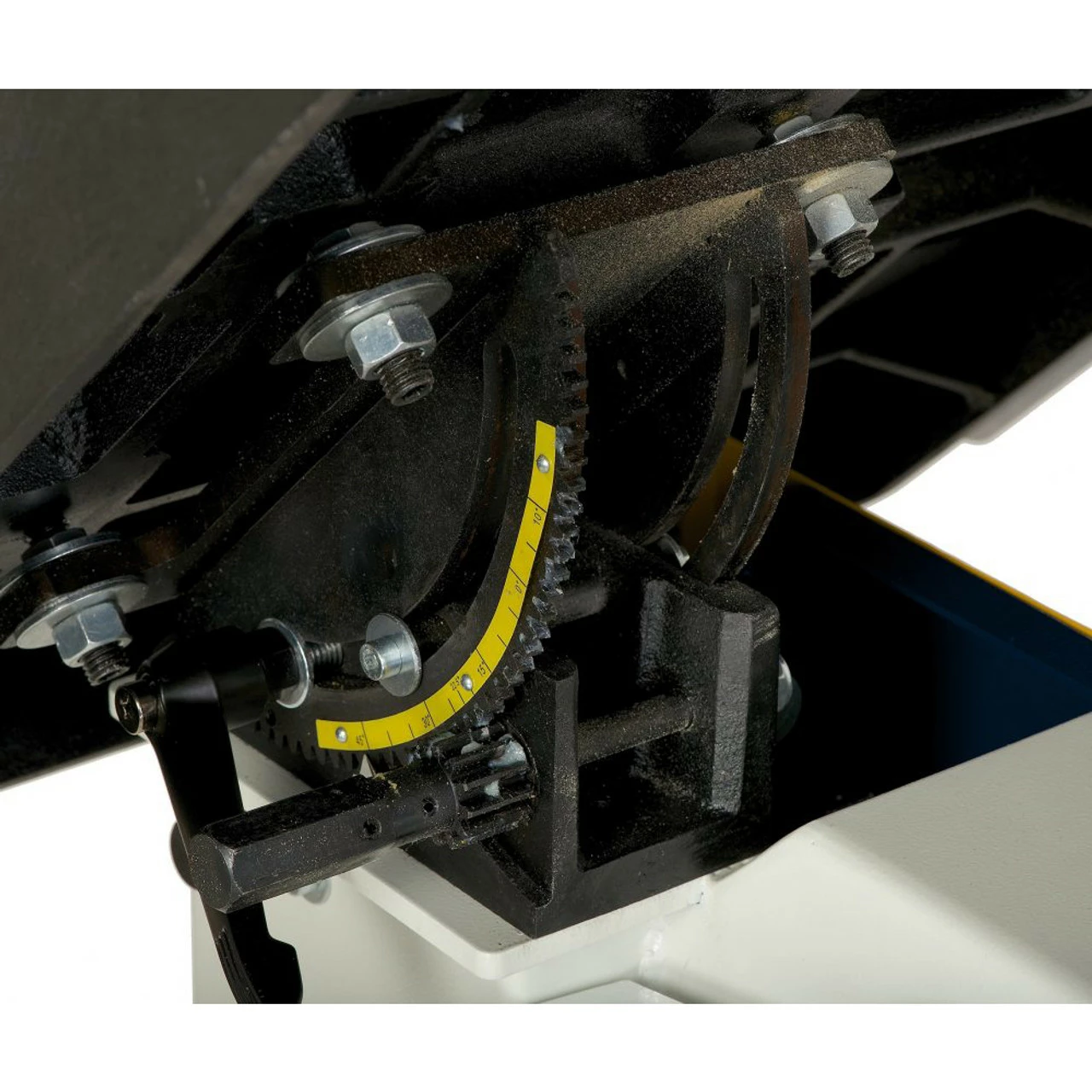

Quick Adjust Trunnion System
Foot Brake With Micro-switch
Specifications:
Motor
Horsepower: 4 HP
Amps: 16
Volts: 220V, 60Hz, 1Ph
Blade Speed: 4,920 FT/MIN
Cutting Capacity
Height: 19″
Width: 17-1/2″
Blade: (Includes 162″ x 3/4″ x 4 TPI, Reg.)
Width: 1/4″ – 1-3/8″
Length: 162″
Table
Size: 25″ x 19″
Left Tilt: -5Β°
Right Tilt: 45Β°
Miter Gauge “T” Slot: (1) 3/4″ x 3/8″
Height to Floor: 33-1/2″
Fence Size: 18-3/4″ x 1-3/4″ x 6″
Overall
Height: 84″
Width: 39″
Depth: 30″
Base Size: 29-15/16″ x 18-1/8″ x 2-7/16″
Dust Port: 2@4″
Net Weight: 498 lbs.
Shipping Weight: 536 lbs.
Shipping Carton: 35-1/4″ x 25″ x 84-1/4″
Warranty: 5 Years (Residential)
