Special Order, allow 3 to 4 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

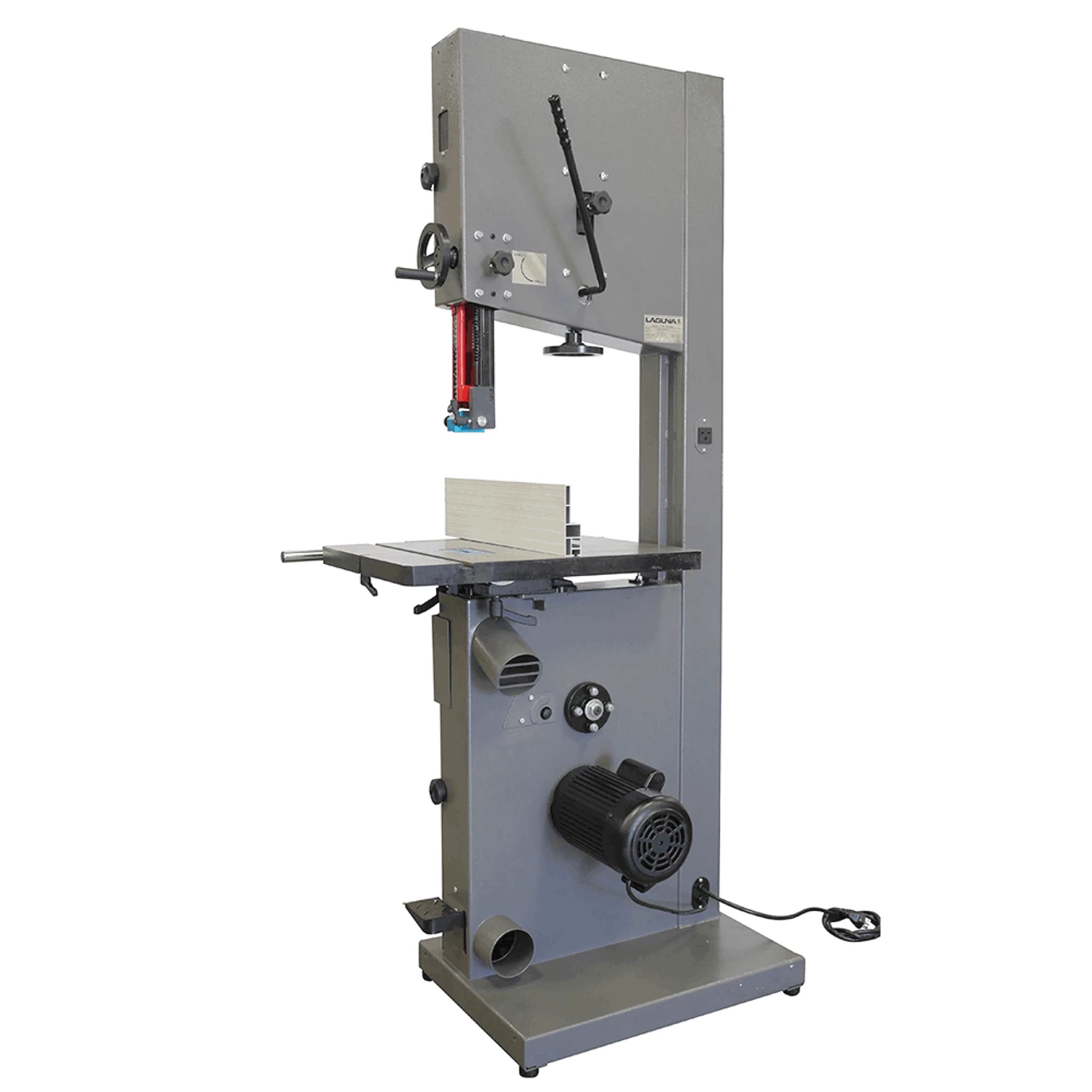

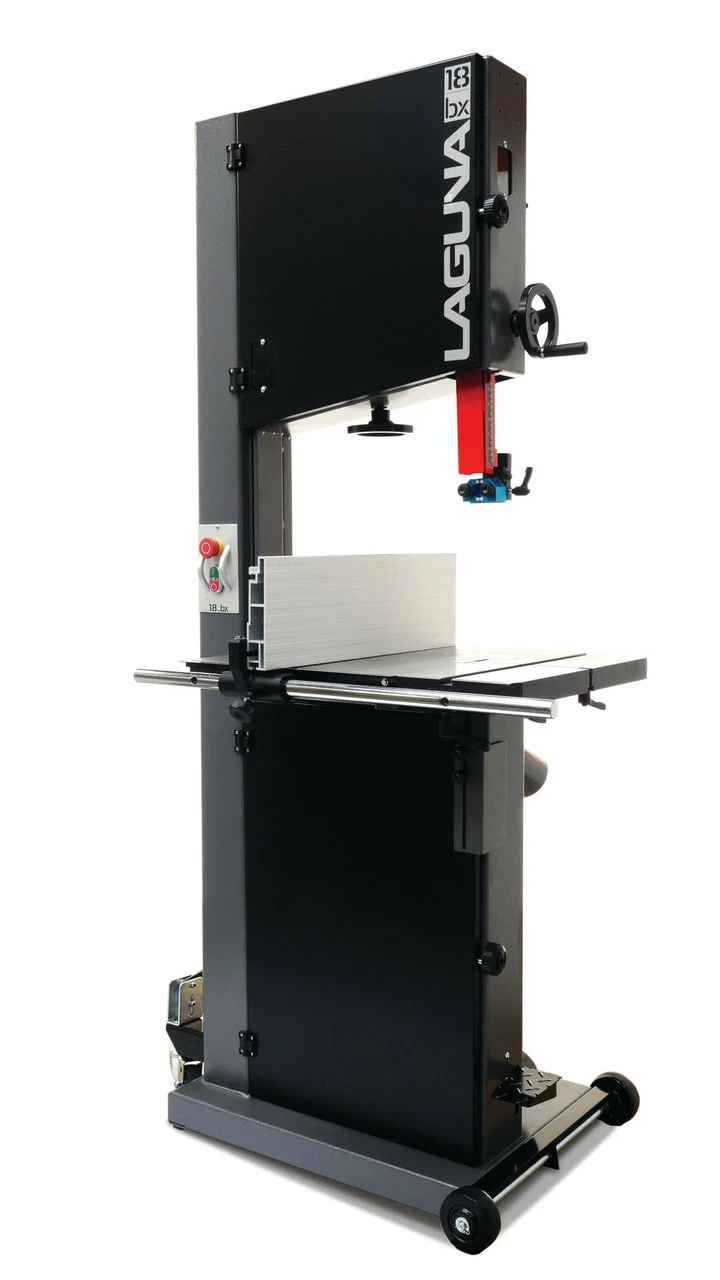

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor, and 145β (368 cm) blade for consistent results, cut-after-cut, regardless of wood material. (Mobility wheels not included.)
Specifications:
Motor: 3HP, 220V, 1 Ph. 12 Amp.
Recommended Breaker: 20 Amp.

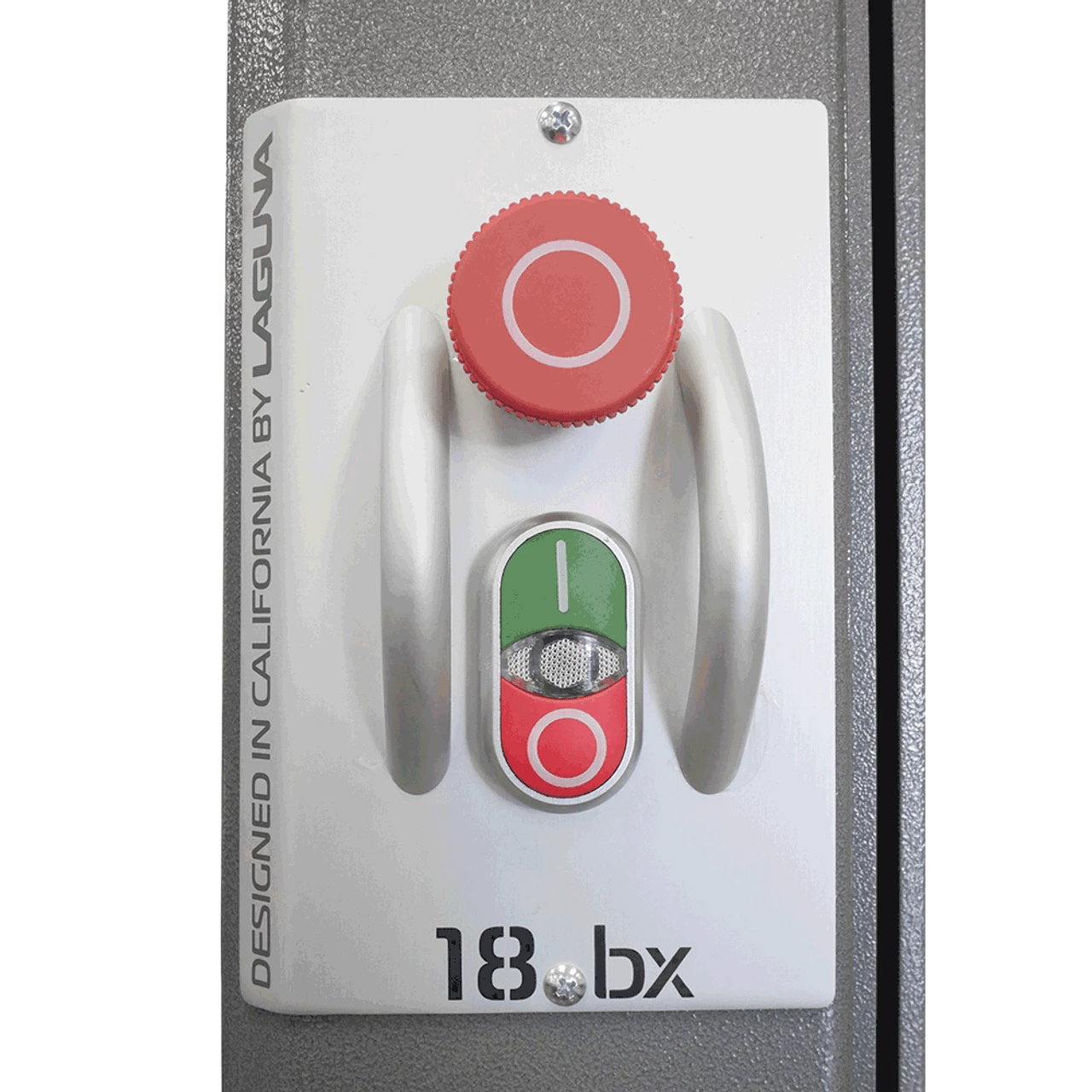

Magnetic Starter
Min-Max Blade Width: 1β8β³-1 1β4β³
Resaw Capacity: 16β³
Throat: 18 β
Blade Length: 145β³

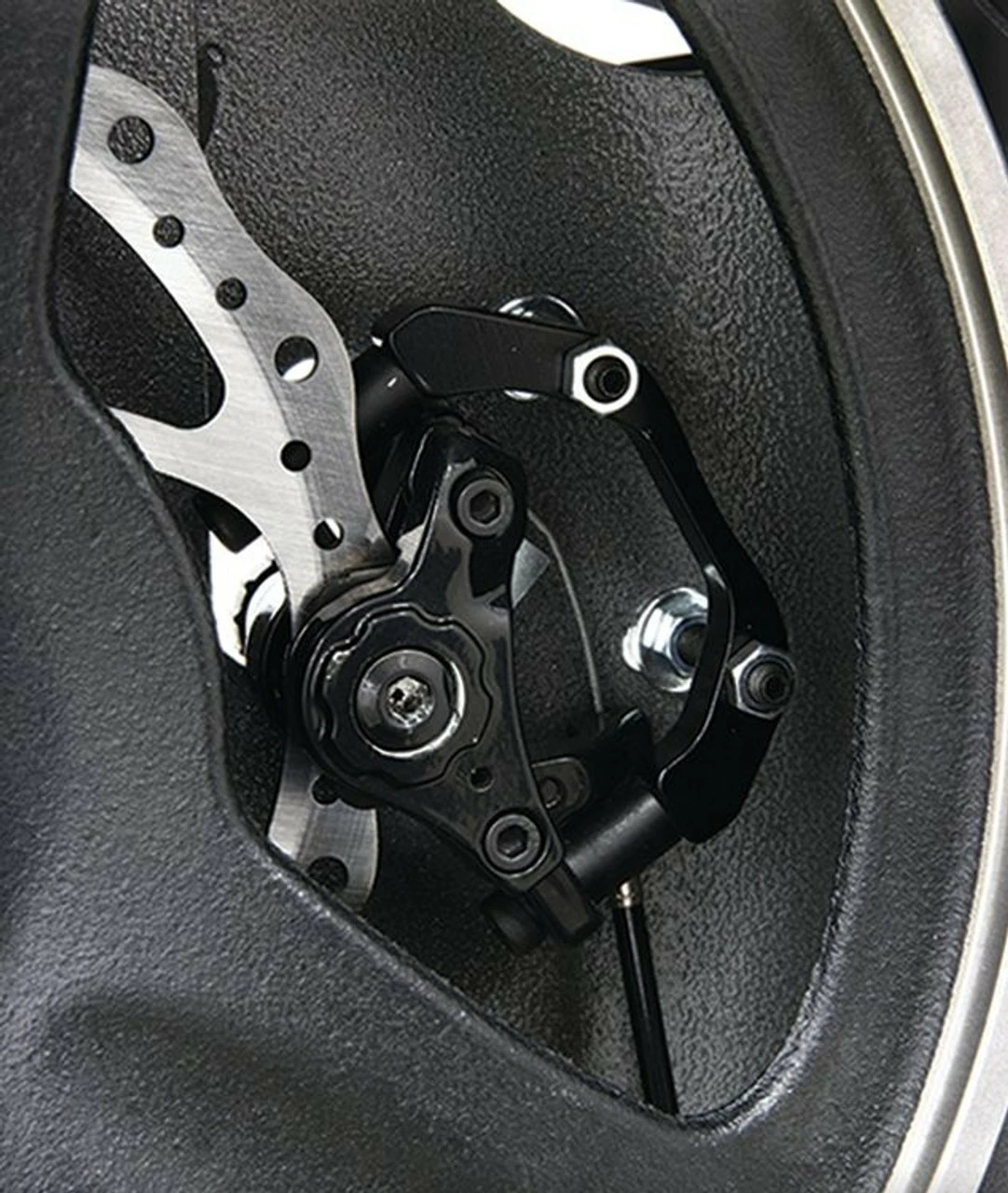

Disc-Brake with Micro Switch
220V Outlet on Back for Light
Window for Tension
Window for Tracking
Magnetic Blade Tension Guide
Worm Gear & Pinion Upper Guide
10 Point Laguna Ceramic Guides
Flat Poly-Groove Drive Belt
Premium Anodized Insert with Micro Adjustment

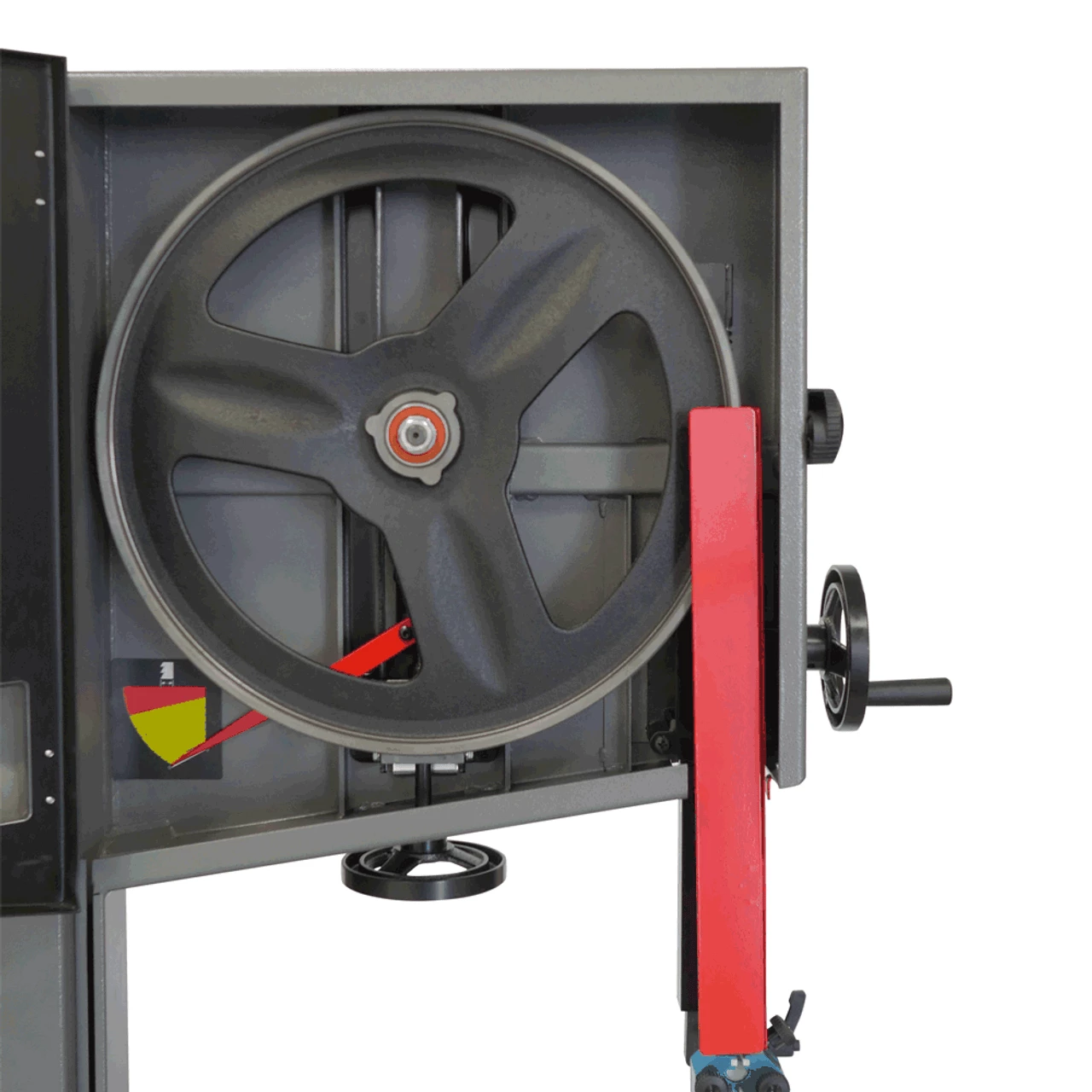

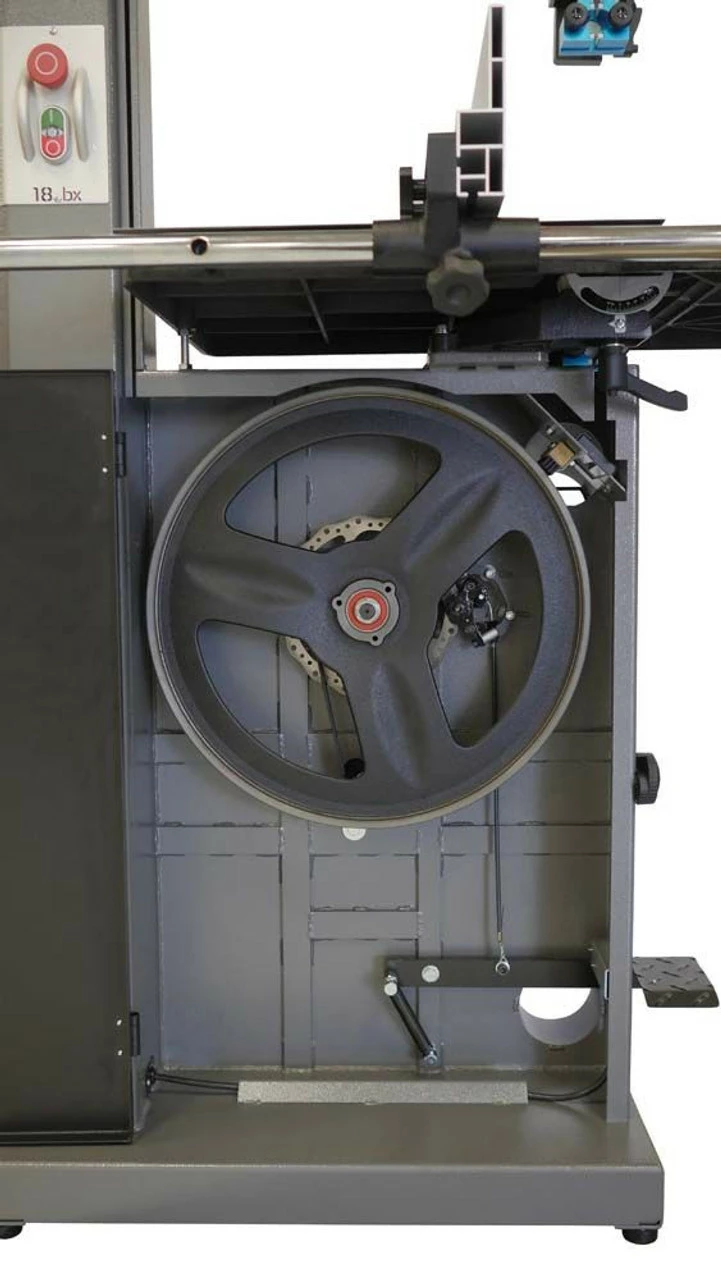

Dynamically Balanced Cast Iron Wheels
Urethane Single Piece Snap-on Tire
Cast Table Size: 20β³ x 26β³
Table Tilt: -6Β°, +45Β°
Quick-Release Tension
Hi/Low Anodized Aluminum Fence: 22 1β2β³ x 5 3β4β³ x 1β2β³
Table Height: 38β³
Dust Ports: 2 x 4β³
Overall Height: 77 3β4β³
Dimensions, Base: 27β³ x 20β³
Dimensions Overall: 36β³ x 30β³
Dimensions Box: 36β³ x 84β³ x 30β³
Dimensions: 55βL x 22βW x 25βH
Weight (Net/Ship): 186/208.65 Kg (410/460 Lbs.)
