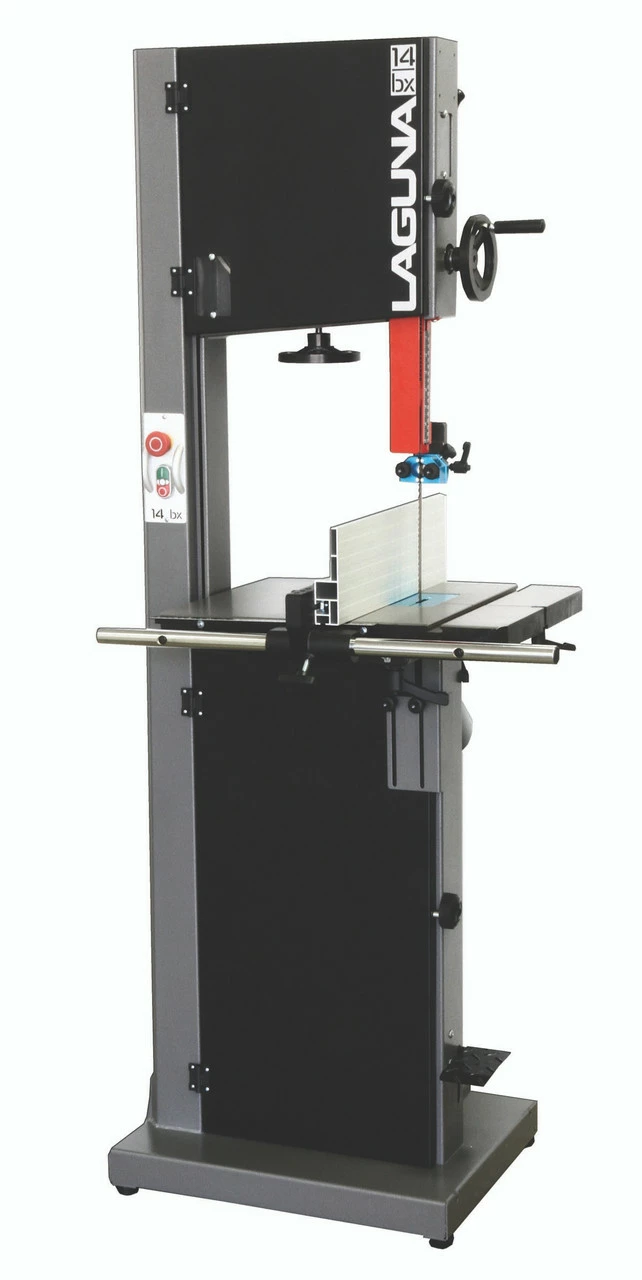

Outlet ✨ LAGUNA 14BX BANDSAW 220V ✨

Similar to the 14|12 Bandsaw but with a 220 Volt wiring. Features include a pyramid-shaped spine, 2.5 HP TEFC Motor, quick release tension, 220-volt outlet, and micro-polished 21 X 16″ table mounted onto oversized Trunnion paired with Aluminum Hi/Low Fence. Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires. The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trademark of Laguna, just like the famous ceramic Laguna guides. Double windows allow you to check both tension & tracking while the machine is running.

Main differences from 14|12:

Weight increased
Solid one-piece Frame
Frame is heavier Gauge
Magnetic On/Off Switch
Disc-Brake w/ Micro-Switch
Dual light mounting positions

Features:

12” Resaw
Height: 70 ¼”
21 ½” X 16” Table
Table Height: 38”
7° Table Tilt Left
2 X 4” Dust Ports
Blade Length: 115”

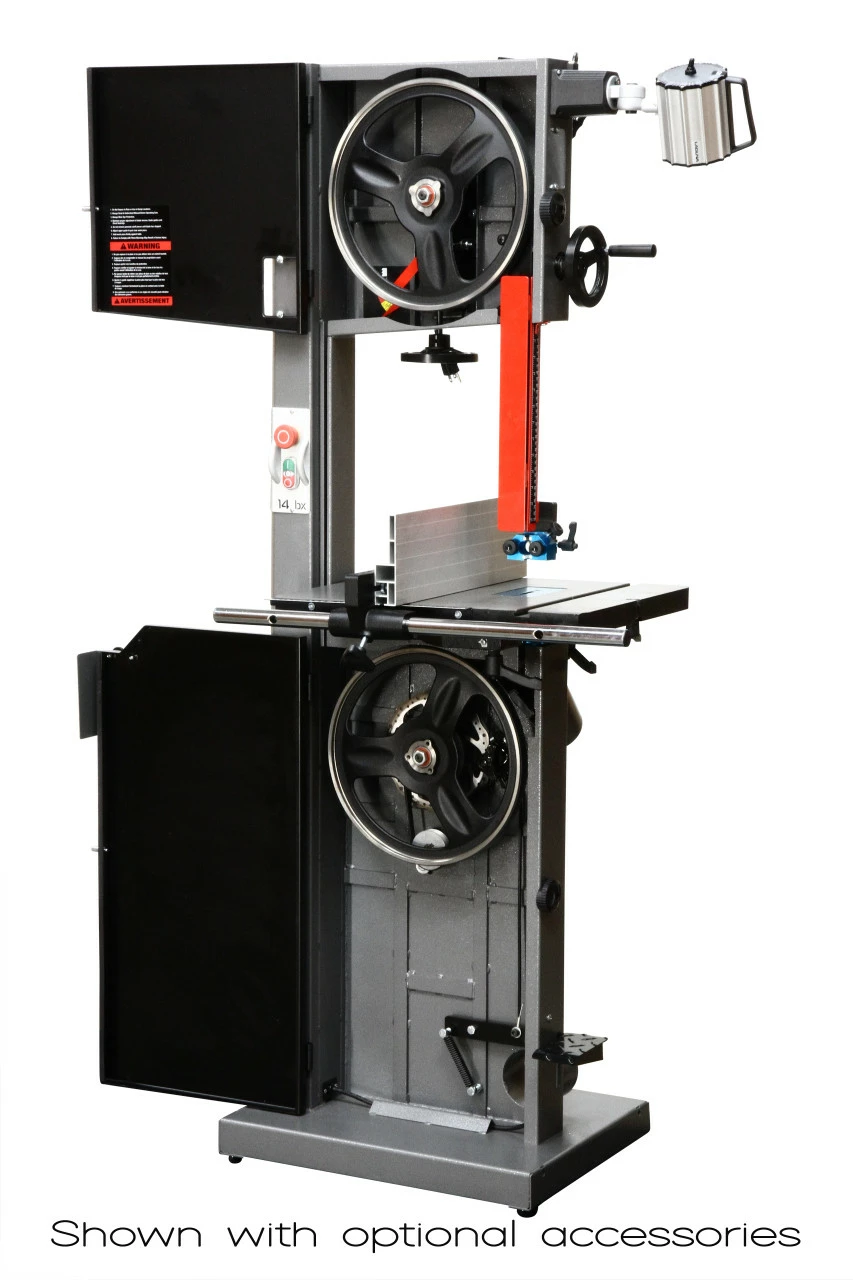

Cast Iron Wheels
Magnetic Starter
Dual Light Mount

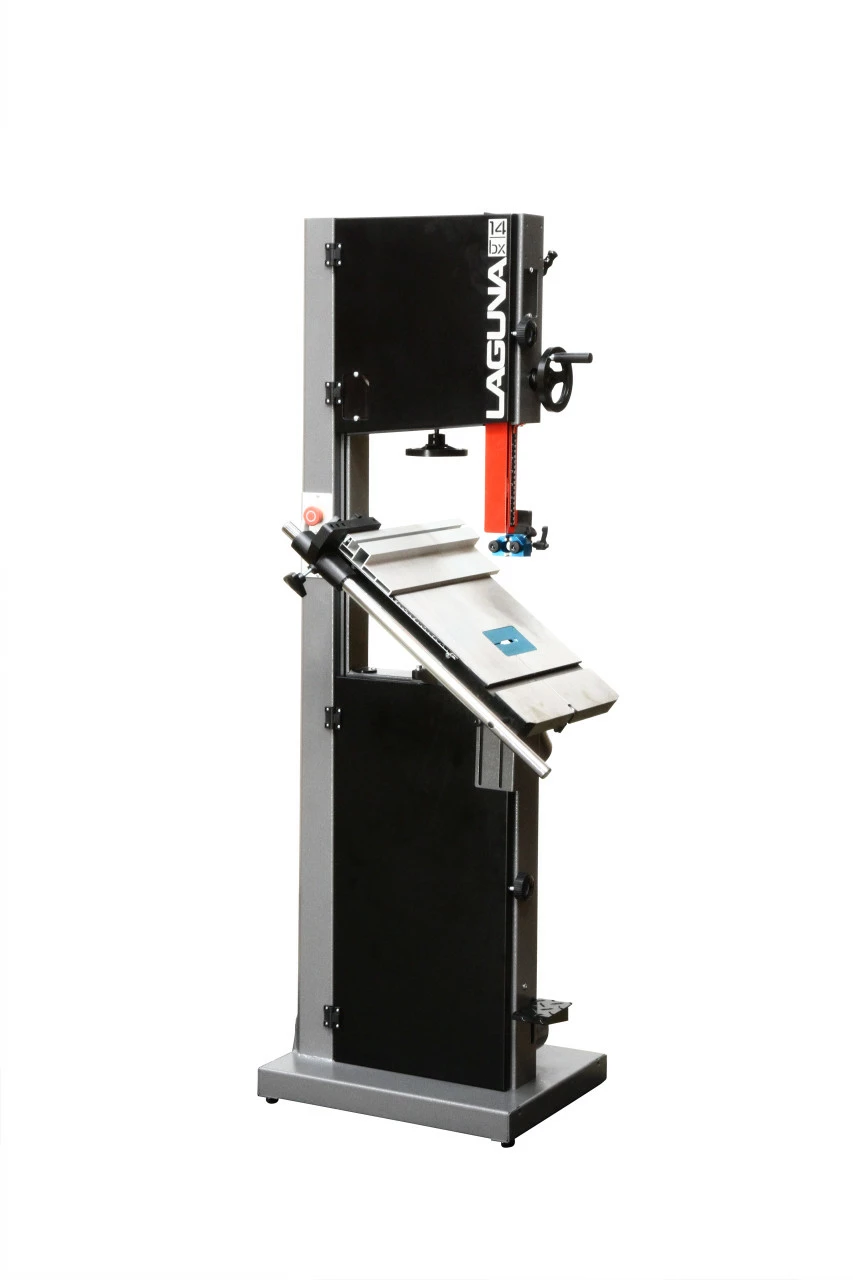

45° Table Tilt Right
Max. Blade Width: ¾”
Pyramid-Shaped Spine
Min. Blade Width: 1/8”
Footprint: 17 ½” X 22 ½”
Quick Release Tension
Magnetic Blade Guard

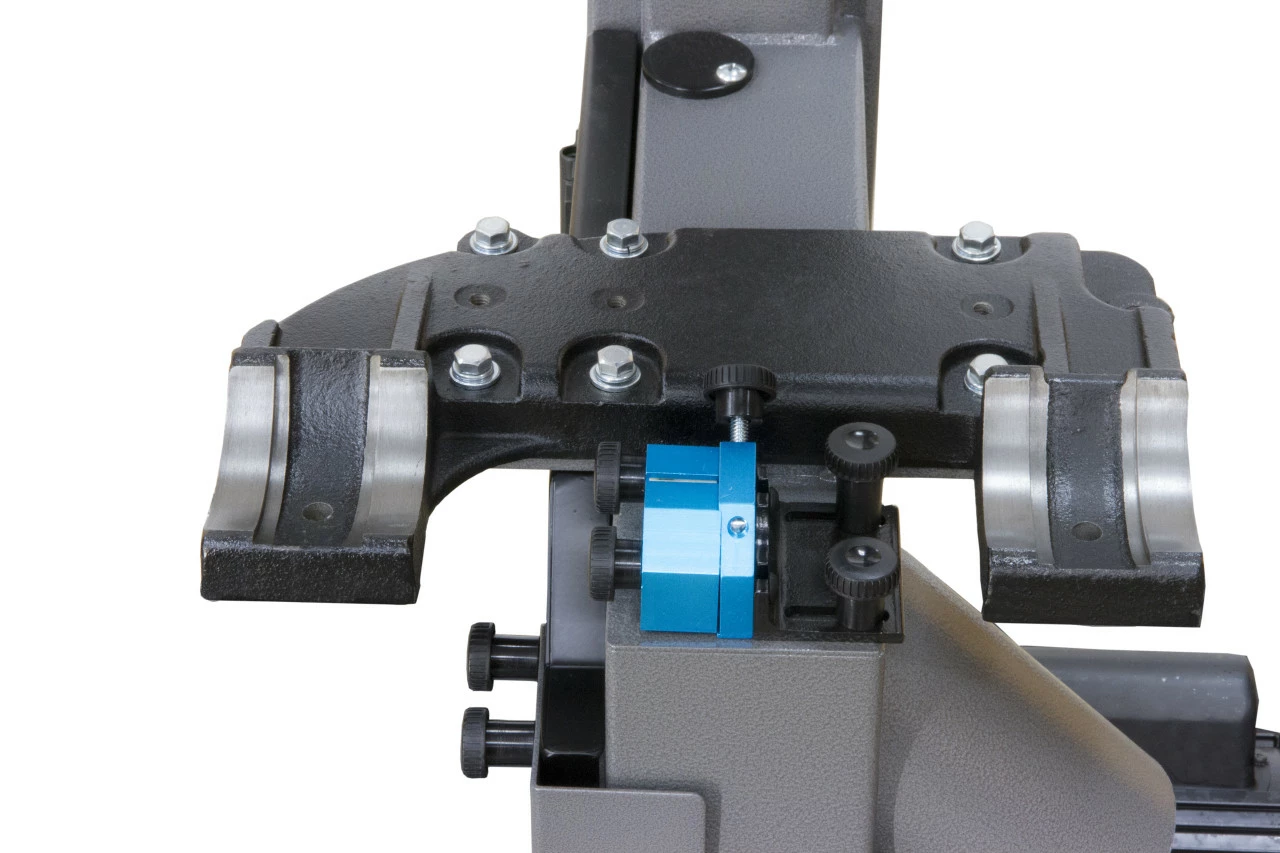

Laguna Ceramic Guides
Hi/Low aluminum Fence
Worm Gear Rack & Pinion

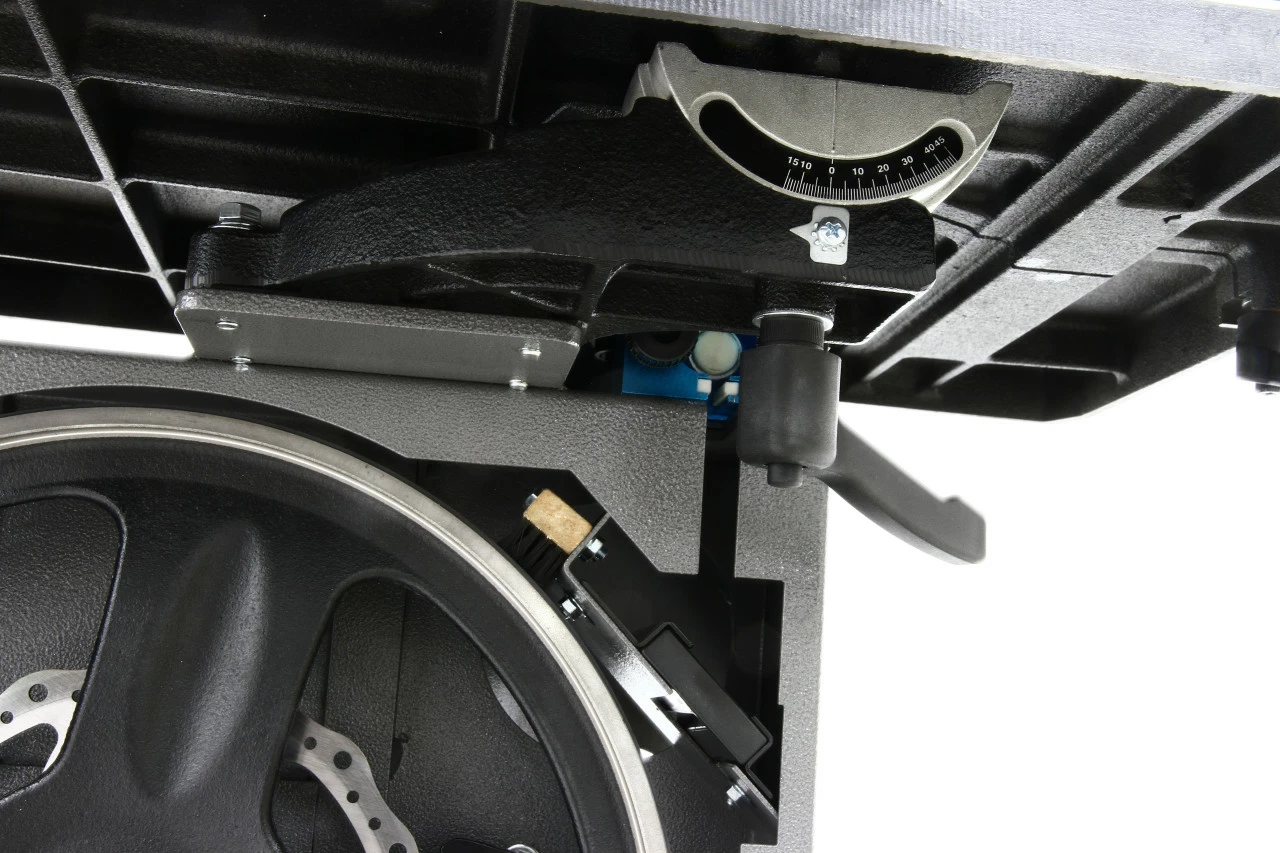

Massive Cast Trunion 8”X13”

Specifications:

1 Phase, 2.5HP, 9.8Amp, TEFC
220 Volt Outlet for Light
6 ft. Cord w/Nema Plug: 6-15P
21 ½” X 16” Table
Table Height: 38”
7° Table Tilt Left
2 X 4” Dust Ports
Blade Length: 115”
Dual Light Mount
45° Table Tilt Right
Max. Blade Width: ¾”
Min. Blade Width: 1/8”
Footprint: 17 ½” X 22 ½”
Weight (Net/Ship): 270/330 Lbs
Height: 70 ¼”
