10326

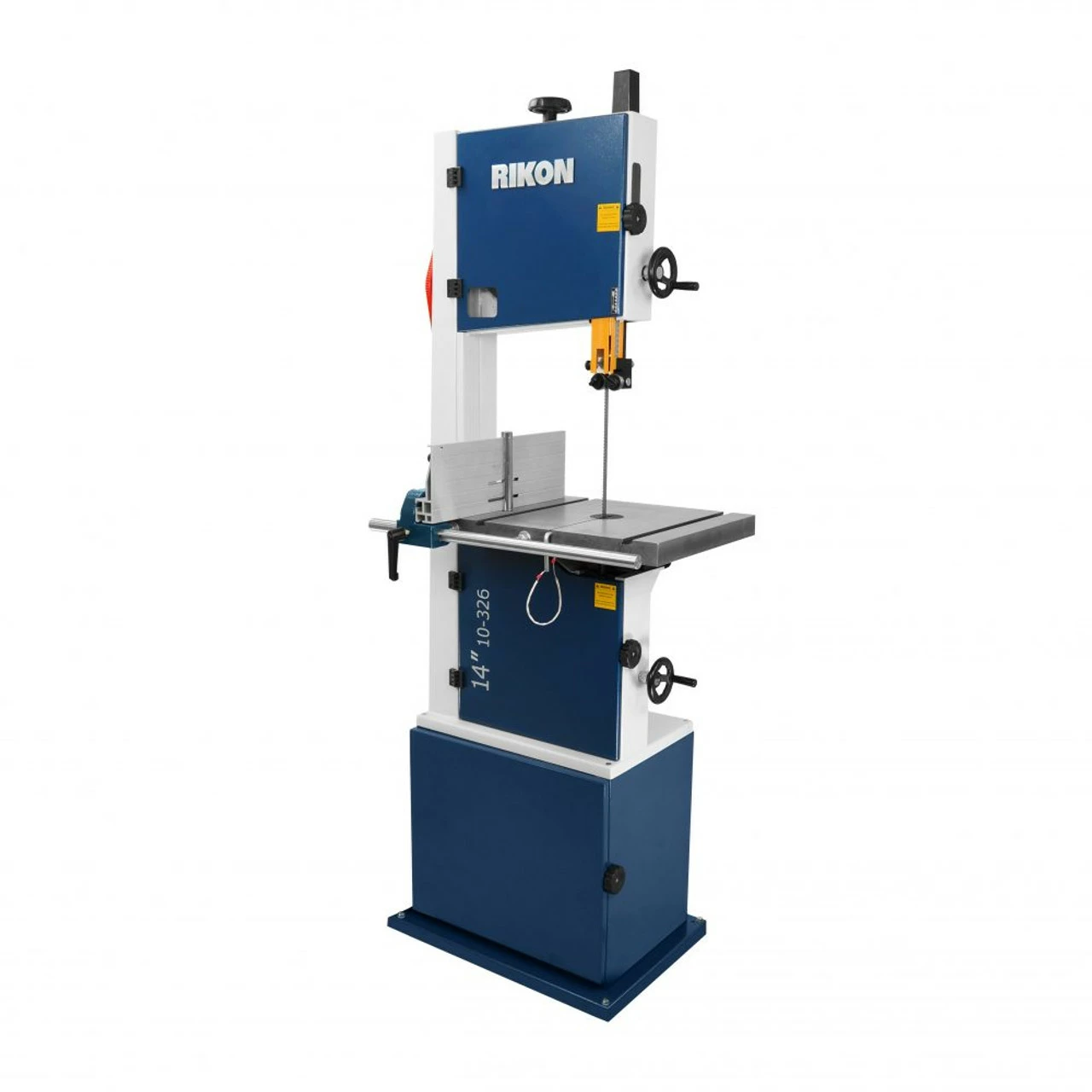

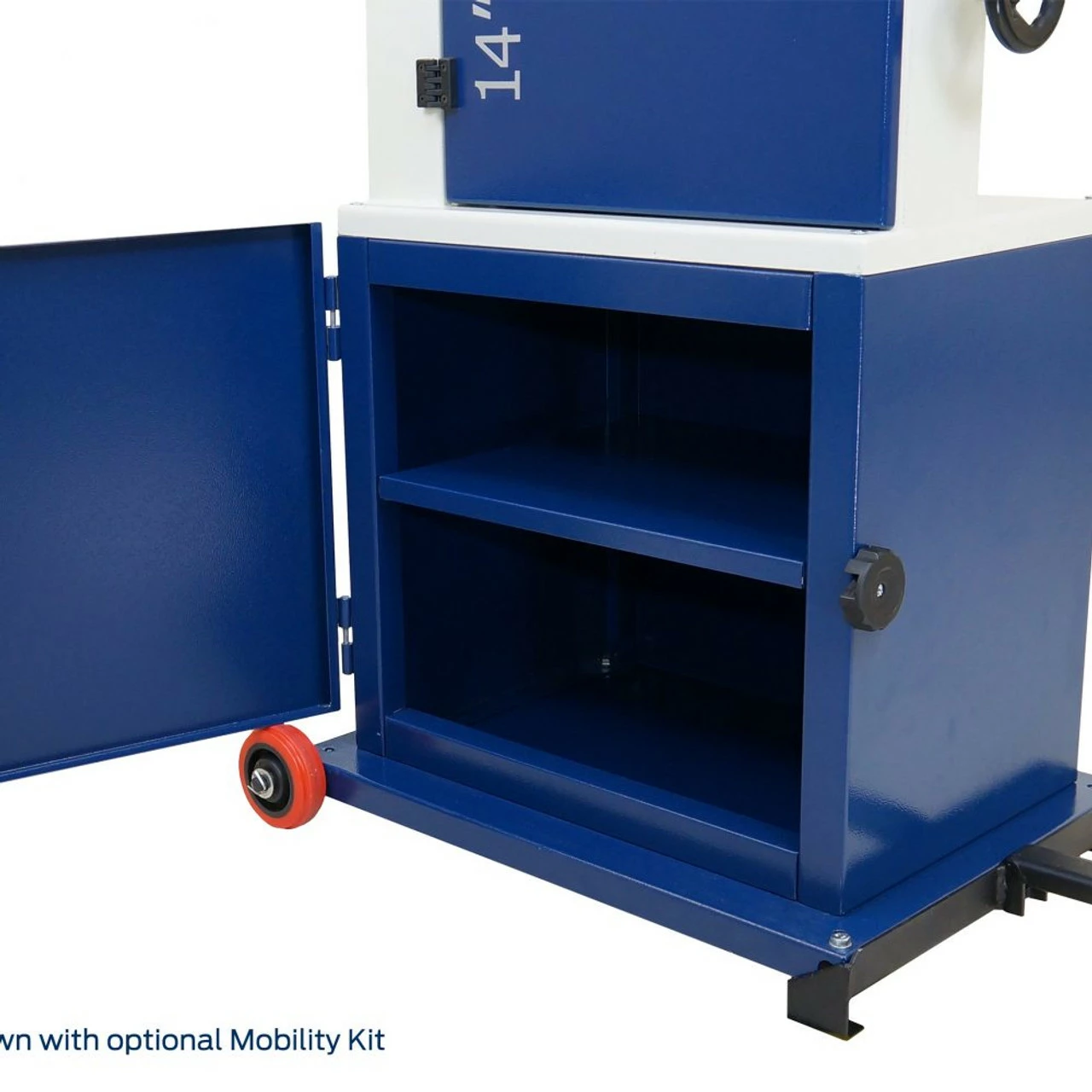

14″ Bandsaw #10-326 is RIKON’s newest model with many Patent Pending features that professionals will enjoy – including spring-loaded tool-less blade guides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6″ tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.
Features:
13″ Cutting Capacity

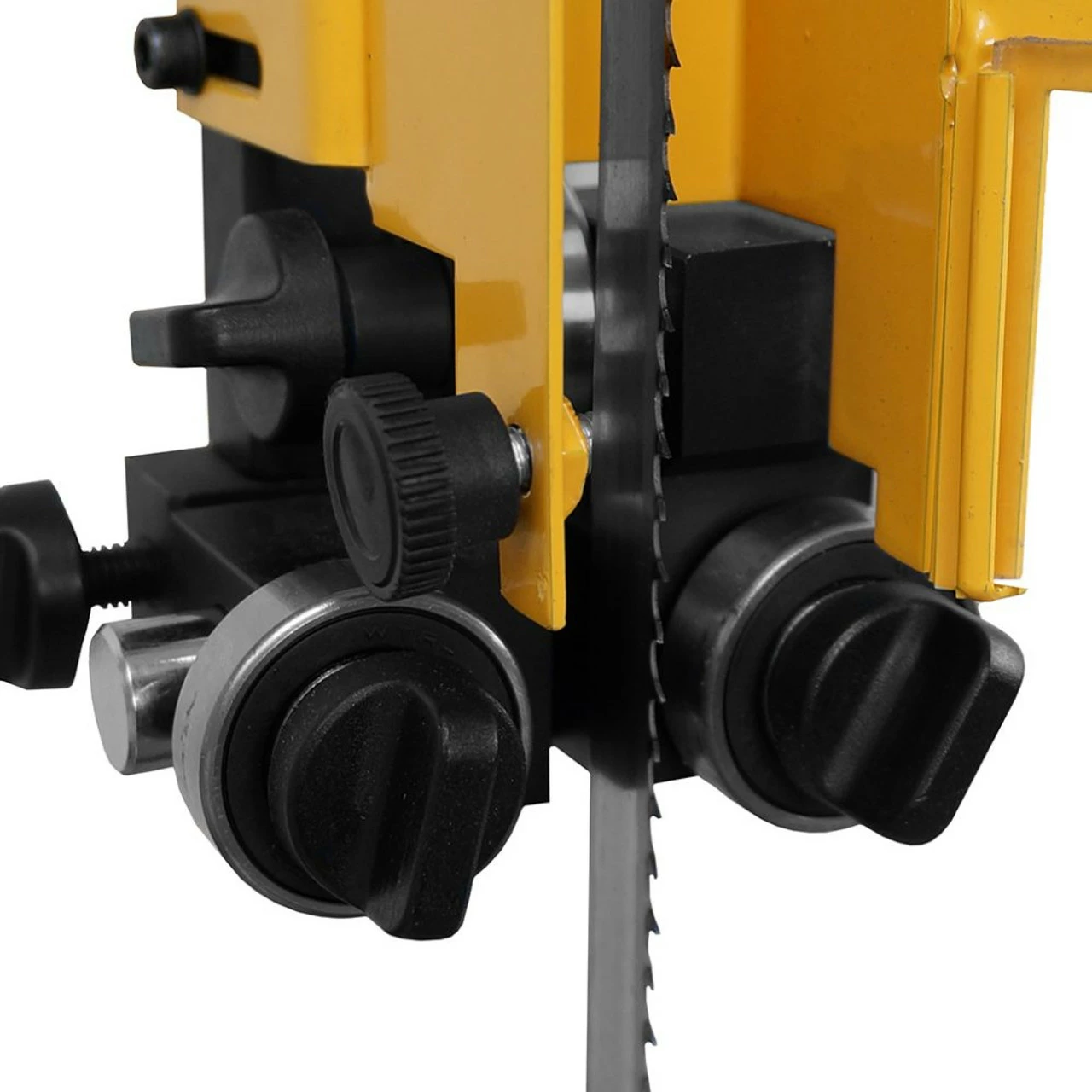

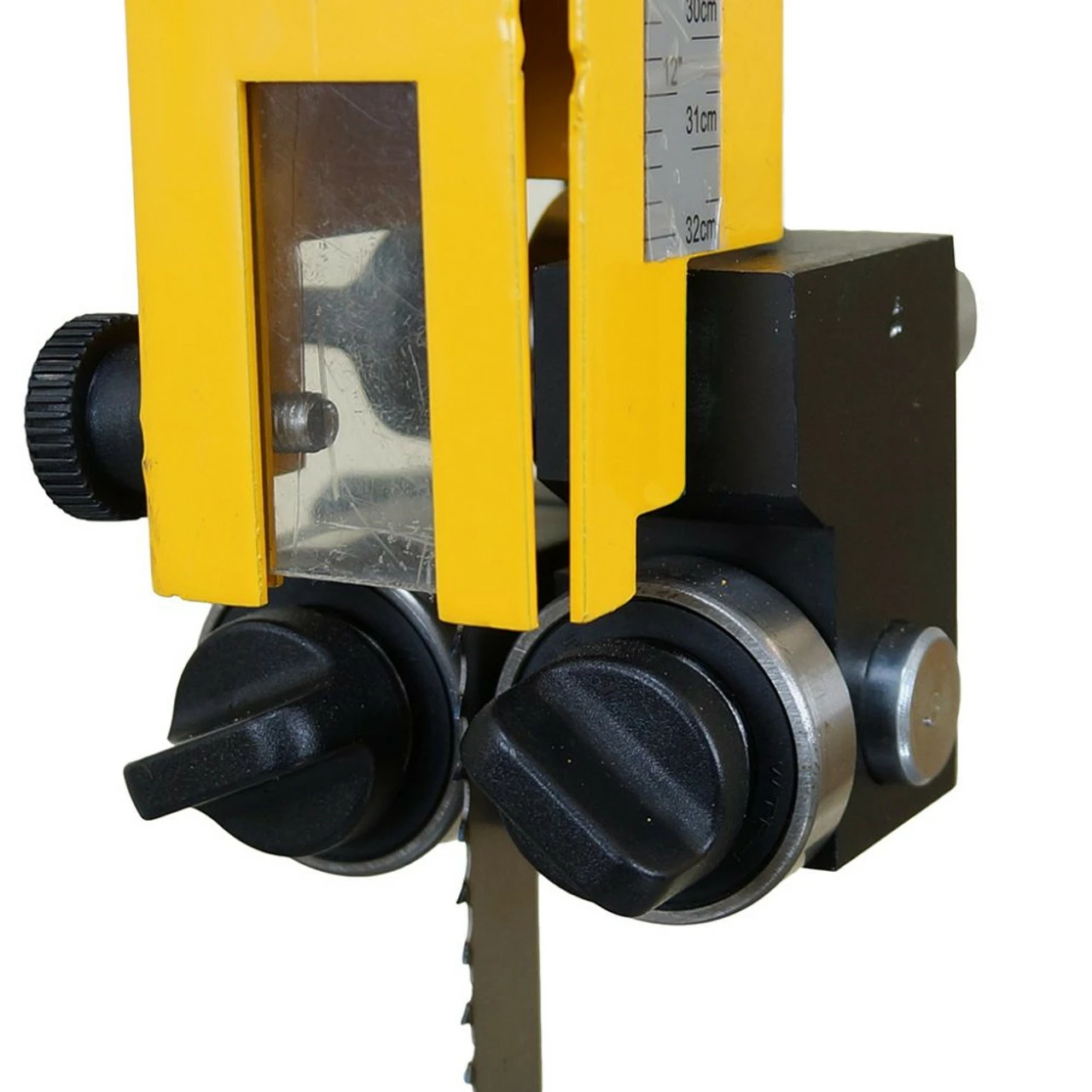

Patent Pending – Spring Loaded Tool-less Guide System

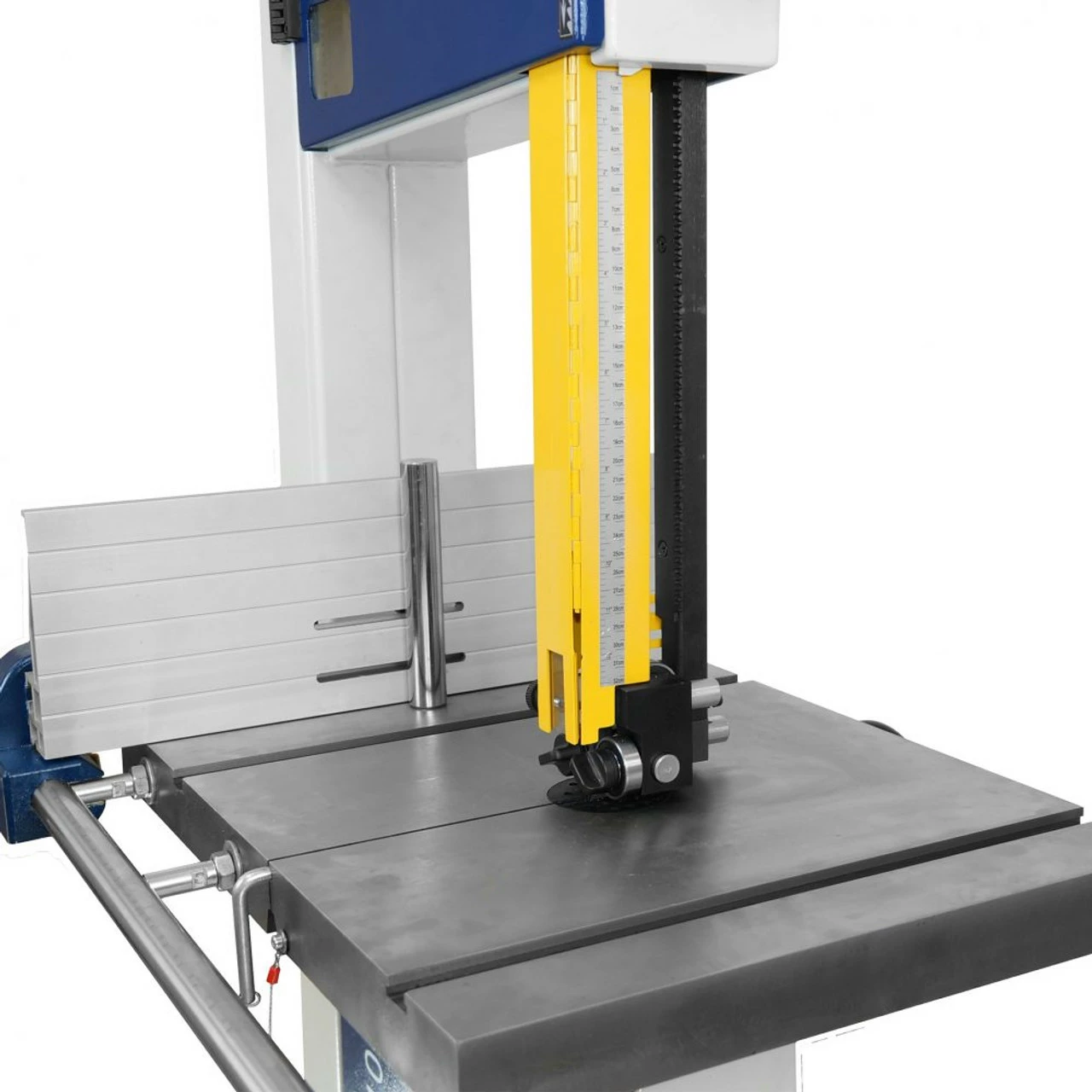

Patent Pending – Quick Adjust Fence System With 6″ Tall Rip Fence
Patent Pending – Quick Lock Cast Iron Trunnion System
2 Speeds 1,445 / 2,950 FT / MIN.
Large Cast Iron Table

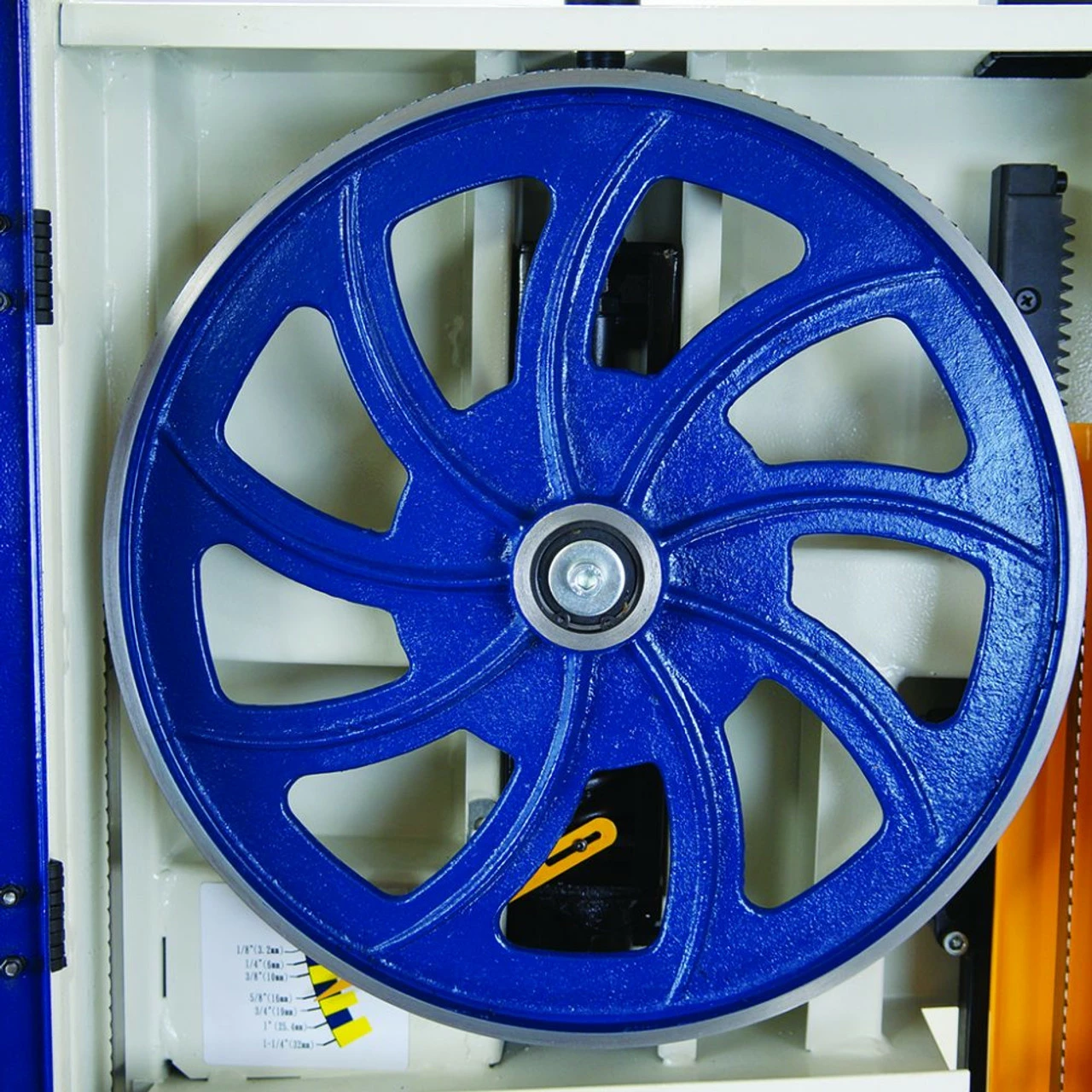

Balanced Cast Iron Wheels
Specifications:
Motor
Horsepower: 1 ΒΎ HP TEFC
Amps: 14/7 Amps
Volts: 115/230V, 60Hz, 1Ph
Blade Speed: 1,445/2950 FT/MIN
Cutting Capacity
Height: 13″
Width: 13-5/8″
Blade
Width: 13″
Length: 111″
(Blade Included 111″ x 5/8, 4TPI, Reg.)
Table
Size: 21 Β½”x 15 ΒΎ”
Left Tilt: -7Β°
Right Tilt: 45Β°
Mitre Guage “T” slot: (2) ΒΎ”x 3/8″
Height to Floor: 40 Β½”
Height to Base: 20-7/8″
Fence Size: 18 ΒΎ”x 1 ΒΎ”x 6″
Overall
Height: 76″
Width: 33 ΒΎ”
Depth: 25″
Base Size: 24″x 17-5/8″
Dust Port: 4″
Net Weight: 129.3 Kg (285 lbs)
Shipping Weight: 132.9 Kg (293 lbs)
Shipping Carton: 54 Β½”x 17-7/8″ x 23-7/8″
Warranty: 5 Years (residential) 2 Year (commercial, industrial, or educational)
